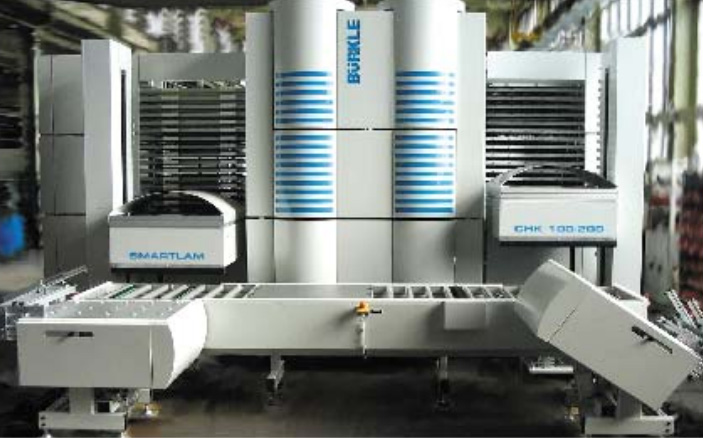

Felt card pad Silicone card pad Smart card laminating machine buffer pad Smart cards such as: UnionPay cards, credit cards, social security cards, IC cards, etc. Smart card laminating machine is a device that is usually used to make such cards by heating and pressurizing. on process, in order to prevent the pressing plate from directly contacting the card, a layer of buffer pad will be added to play a protective and buffering role. Keqiang silicone buffer pad is usually 3mm thick, with good elasticity, high temperature resistance and can effectively transfer temperature evenly.

Features

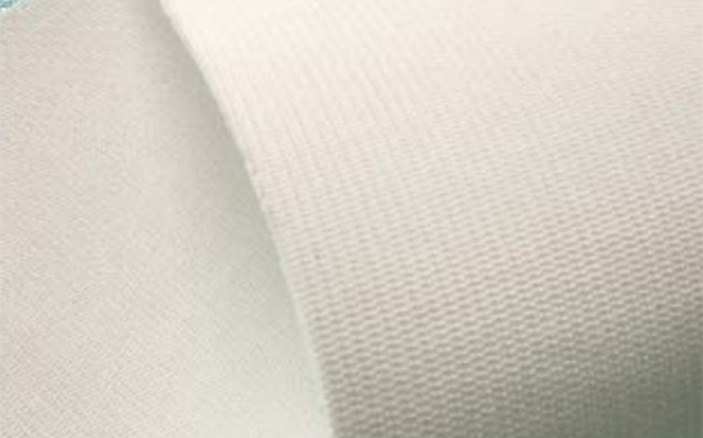

KQ4213 special silicone pad (double-sided patterned silicone with glass fiber fabric in the middle)

· The product uses raw materials imported from Germany, is resistant to high temperatures and has good elasticity.

· Fast heat conduction and uniform heat distribution can greatly increase the output of products during the lamination process.

· It has excellent pressure resistance, no deformation, reliable and durable.

· It helps to eliminate pits and fine grains on the surface and improve the quality of products

· Solvent resistance, aging resistance, corrosion resistance, non-toxic and odorless, in line with environmental protection requirements.

K04233 special silicone pad (double-sided felt with silicone in the middle)

· The raw materials of the product are all resistant to high temperatures and pressures, meet the process requirements of card lamination, and are widely used as special card consumables.

· Fast and uniform heat conduction, improve production efficiency and save energy.

· It has excellent water absorption performance, can effectively eliminate bubbles and watermarks on the surface of the card, and greatly improve the qualified rate of products.

· It has good buffering performance, avoiding scratches caused by hard contact between the heating plate and the laminate, and extending the service life of the heating plate and the laminate.

· It is easy to use and saves labor hours for replacement.



Technical Parameters

Model	KO4213	KQ4233
Surface material	Patterned Silicone	High Temperature Resistant Felt
Middle layer material	Fiberglass Fabric	Black Silicone
Hardness Shore A	55+5	50+5
Tensile strength(N/mm)	80	60
Adhesion N/mm	4.5	4.5
Temperature resistance ℃	230	200
Surface color	White	White
